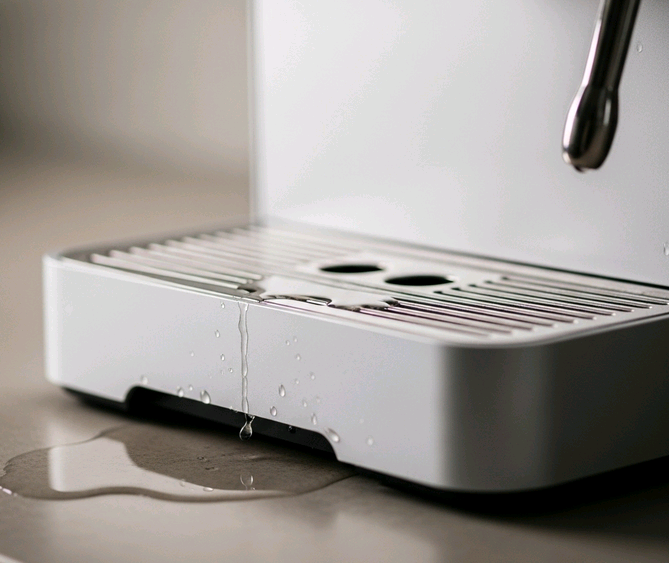

Why is My Espresso Machine Leaking From Bottom? (Common Causes & Fixes)

It’s Infuriating When Your Trusty Espresso Machine is Leaking

It’s infuriating when your trusty espresso machine, the star of your daily morning ritual, starts leaking water all over your counter. A leak from the bottom is not just messy but also an indication that something inside is not right. As a home barista and one who has had her fair share of machine problems, I can tell you this is not normal function, and ignoring it will lead to bigger problems (or even hazards!).

Therefore, if you notice puddles beneath your beloved machine, do not panic. We’re going to break down the most probable reasons for espresso machine leaks and give you hands-on steps to diagnose and, hopefully, fix the problem.

The Usual Suspects: Why Your Espresso Machine is Leaking

When water finds a way out of your machine, it’s usually because there’s a breach in the internal water flow. Here are the most likely suspects:

1. Loose Connections, Clamps, or FittingsPlease note that this is the most common and typically the easiest repair. There are numerous hoses, pipes, and tubes in your machine that are secured by various clamps and fittings. Over time, especially with the constant vibration of the pump, changes in temperature, or if the machine has been moved, these connections can loosen. A slight wobble can turn into a constant drip under pressure.
2. Worn-out or Damaged O-Rings and GasketsEspresso machines operate under pressure and heat. The rubber O-rings and gaskets that seal the numerous connection points (around the boiler, heating elements, pump, or plumbing connections) are exposed to these harsh conditions constantly. After years of service, they can break down, harden, crack, or embrittle, losing their seal and allowing water to pass through. Even acidic descaling solutions can sometimes accelerate this breakdown.
3. Cracked Hoses or Internal TubesYour machine also has a system of flexible hoses and rigid plastic or metal tubes to circulate water. These, over time and as they undergo heating/cooling cycles repeatedly, will develop fine cracks. What seems like a very tiny crack will be a large leak once the machine is under pressure in heating or brewing cycles.
4. Boiler Leaks (A More Serious Problem)A leak from the boiler body itself is less probable but more serious. While stainless steel boilers are immune to this, older models with brass or aluminum boilers can develop corrosion that pinholes or cracks the boiler. More commonly, a boiler leak is not from the body itself but from a failed seal around a heating element, a pressure relief valve, or other fittings attached to the boiler.
5. Pump IssuesWhile the pump itself can at times be the source of a leak, more often it is a loose or broken connection to the pump rather than the internal mechanism of the pump itself that has gone bad. However, inspect the pump area carefully.
6. Overfilling Drip Tray or Water ReservoirThis is perhaps obvious, but it’s a common cause of “leaks” that aren’t internal failures. If you’ve got a full drip tray you haven’t emptied or you’ve filled your water reservoir too much, there’s going to be water that ends up underneath the machine. These should always be the first points you investigate!
7. Problems with the Drainage System (Especially Commercial Machines)In commercial or plumbed-in units, issues in the internal drain lines, main drain pan, or external drain connection may result in water collecting under the unit.

Becoming a Leak Detective: What to Look For and How to Troubleshoot

Don’t panic (or call a tech) yet; become a detective instead.

Observing the leak closely can provide some useful information:

• Pinpoint the Location: Can you exactly identify where the water is coming from? Is it front, back, side, or center?
• Observe the Flow: Is it a slow, steady drip, a fast seep, or a gush?
• Timing is Everything: Does the leak happen:
  • As soon as you turn the machine on?
  • Only when it’s heating up?
  • Only when you pull a shot or steam milk (i.e., when under pressure)?
  • Continuously, even when the machine is off?
• Visual Cues: Instead of water, check for mineral deposits (white, chalky substance) or corrosion near the leak. This is the indication of a long-standing drip.
• “Normal” vs. Abnormal: Remember, a small, occasional drip from a pressure relief valve during warm-up is normal. A constant or heavy leak of water beneath the machine, outside the drip tray, is never normal.
• Recent Events: Did the leak start after a recent descaling cycle? Descaling can sometimes dislodge scale that was sealing a small crack, or the chemicals can impact older seals. Have you relocated the machine or performed any internal maintenance recently?

What to Do When You Notice a Leak

Your first priority is safety and reducing additional damage:

• Unplug Right Away: This is the most important thing to do. Unplug your espresso machine right away from the electrical outlet. Water and electricity do not mix.
• Move Away and Clean Up: Get the machine away from any other electronics and attempt to mop up any water that may be standing.
• Perform a Visual Inspection (If Comfortable): If you are mechanically inclined and comfortable with removing the outer casing (refer to your manual for safe access procedures), visually inspect all hoses, fittings, and connections that you can see for any visible drips, cracks, or loose parts. Look for any tell-tale moisture or mineral deposits.
• Tighten Connections (With Caution): If you find a glaring loose fit and can safely access it, try to tighten it cautiously with the appropriate tool. Don’t overtighten, as this can strip threads or ruin plastic components.
• Identify Damaged Parts: If you see cracked hoses or clearly degraded O-rings/gaskets, these will have to be replaced. Take photos if you will be purchasing parts online.
• Know When to Call a Pro: For any internal leaks, especially from the boiler, pump, or if you’re not confident in your DIY repair skills, it’s always best to bring in a professional espresso machine technician. Internal repairs, especially with pressurized water and electrical systems, can be dangerous if not performed correctly.

A leaking espresso machine is a pain, but by troubleshooting systematically and understanding the common causes, you can generally identify the problem and have your faithful machine pulling perfect shots once more.

FAQs

Why is my machine leaking water from the bottom?

A leak of water from the bottom of an espresso machine is most likely due to loose internal fittings, worn O-rings or gaskets, cracked hoses, or a boiler or boiler fitting leak. Less commonly, it’s simply an overflowing water reservoir or drip tray.

Why does my espresso come out watery at the end?

If your espresso is watery at the end, it’s typically a symptom of over-extraction. This happens when the water has been in contact with the coffee grounds for too long and is extracting unwanted bitter and thin flavors. Some common culprits are a grind that’s too fine, a brew temperature that’s too high, a shot time that’s too long, or a failure of puck prep (i.e., channeling).

How to fix a leaking coffee machine?

To fix a leaking coffee machine:

1. Unplug the machine immediately.
2. Identify the source of the leak: Check for an overflowing water reservoir or drip tray first.
3. If internal, visually inspect internal hoses, fittings, and seals for visible drips, cracks, or loose connections (if it is safe and comfortable to open).
4. Hand tighten any loose fittings.
5. Replace worn or cracked O-rings, gaskets, or hoses.
6. For more serious leaks (i.e., from the boiler or pump) or if you’re unsure, call for professional repair.

How do I prevent my coffee maker from leaking?

To prevent your coffee maker from leaking:

1. Avoid overfilling: Ensure you’re not overfilling the coffee filter basket or water reservoir.
2. Check seals and connections: Inspect for and replace any broken gaskets or O-rings around the filter basket, water reservoir, or brew parts.
3. Clean descale thoroughly: Sometimes mineral deposits can make a seal not be tight; cleaning descaling the machine will help.
4. Verify parts are assembled correctly: Make sure the carafe, filter basket, and lid are firmly in position prior to brewing.
5. If it’s an espresso machine, state potential internal issues like loose hoses or cracked components.
